IndustRIAL STRENGTH

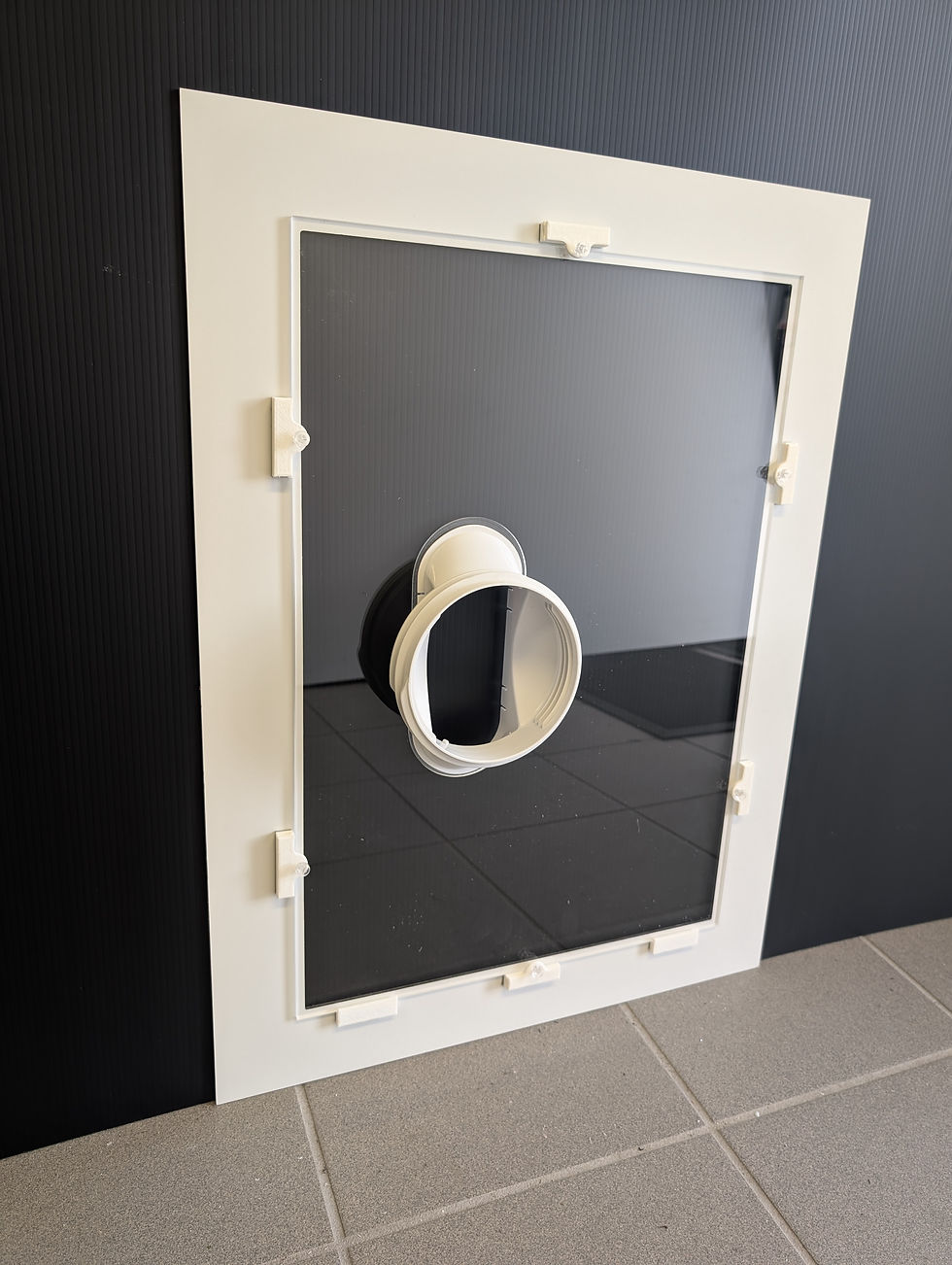

Our acrylic panels are manufactured from high-grade, UV-stable clear acrylic. This material offers superior clarity and structural integrity, ensuring a seamless fit for your portable air conditioner while maintaining a sleek, modern aesthetic. The rigid composition provides exceptional durability against temperature fluctuations and physical stress, making it the ideal choice for high-performance home cooling solutions.
Window panels are made from 4.5mm sheet and Patio Door panels are made from 6mm sheet.
Technical Specs: 100% UV Protection • High-Temperature Resistant • Impact-Resistant • 99% Light Transmission
Installation
01
Check the Adapter fit

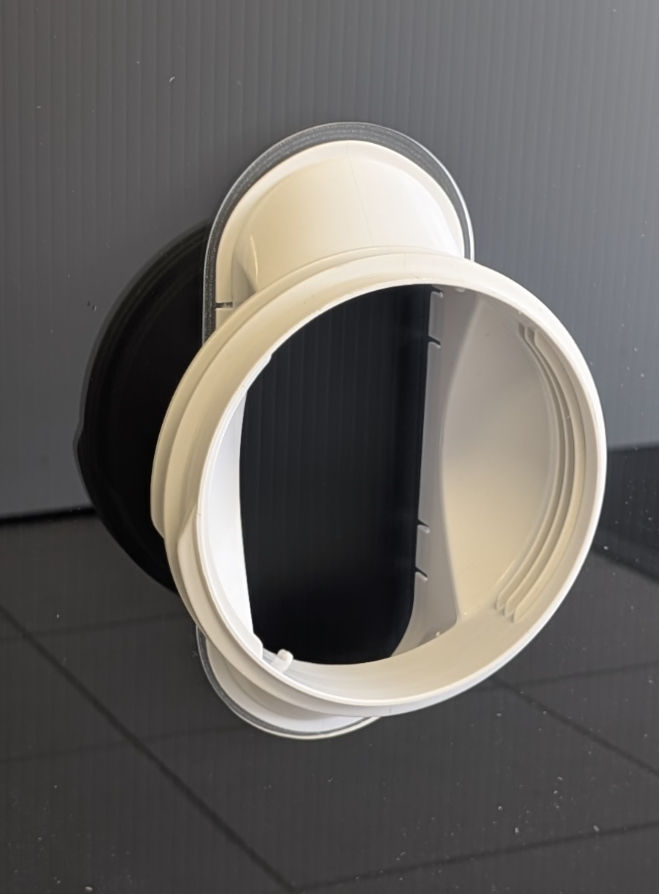

With a light touch, make sure the hose end of the AC unit fits the provided panel. Some adapters will need a squeeze and some will need to have the clips pushed in while installing. Please note that older hose ends can become brittle so care is needed for this step.
02
Install The bottom window Clips

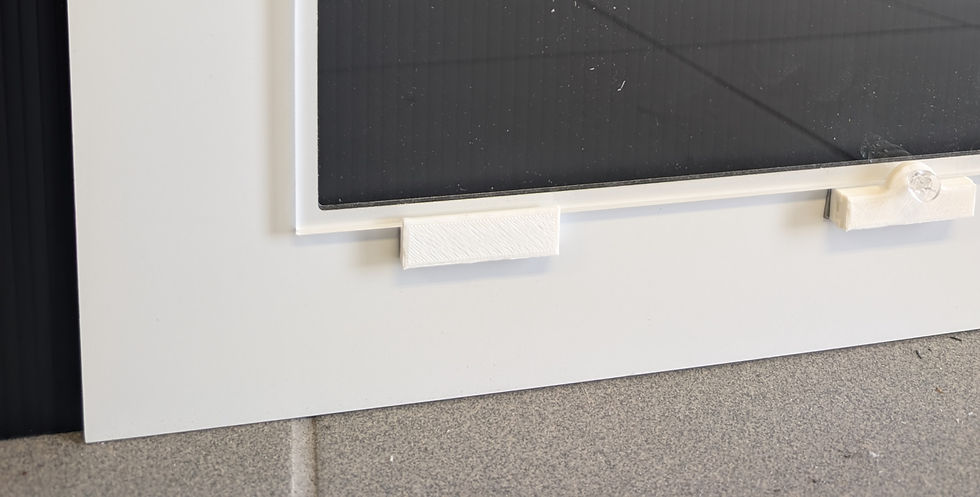

Each Cold Vent panel will come with a set of installation clips that install with VHB (very high bond) tape. The bottom two clips should be installed 1/4" off the bottom edge of the window opening in most cases.
03
Install the other window clips

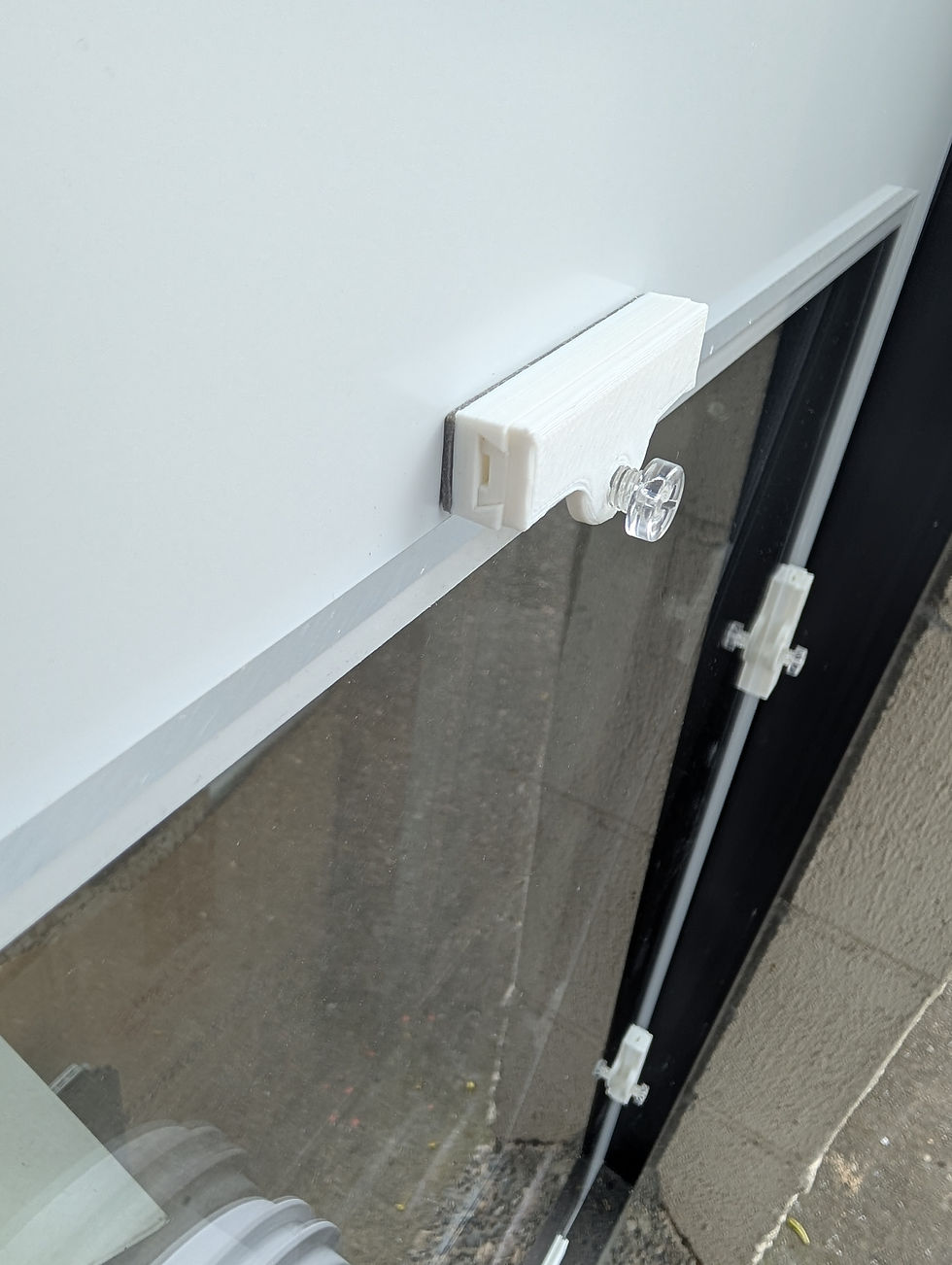

The Cold Vent mounting system is made up of up to 8 dovetail clips that will sit on the edge of the acrylic panel. once the dovetail base is installed, the retaining clip can be slid in and the clear screw can be adjusted to lightly secure the panel against the window frame.
